I recently wanted to work on Metric Extensions automation, and realized the task was a bit more complicated than I thought. My original idea was to look into the emcli verb list, but I was unlucky. In fact, emcli does not allow you to retrieve information about Metric Extensions.

$ emcli help | grep -i metric_extension
    export_metric_extension           -- Export a metric extension to an archive file
    get_unused_metric_extensions      -- Get a list of unused metric extensions
    import_metric_extension           -- Import a metric extension archive file
    publish_metric_extension          -- Publish a metric extension for use by all administrators
    save_metric_extension_draft       -- Save a deployable draft of a metric extension

I had to dig further, looking into the Enterprise Manager SYSMAN schema.

Metric extensions are not stored under MGMT$ views

At first, I checked in the MGMT$ views, in the SYSMAN schema. They usually contain all the relevant information you need when doing automation with the Enterprise Manager. The documentation gave me nothing about Metric Extensions there, and I did not find anything either:

SQL> SELECT owner, object_name, object_type
FROM dba_objects
WHERE owner = 'SYSMAN'
AND UPPER(object_name) LIKE '%EXTENSION%'
ORDER BY object_name;

OWNER  OBJECT_NAME       OBJECT_TYPE
------ ----------------- ------------
SYSMAN EM_TYPE_EXTENSION PACKAGE
SYSMAN EM_TYPE_EXTENSION PACKAGE BODY

After a lot of searching, I found the undocumented MEXT views, where all the information on Metric Extensions is stored.

SELECT owner, object_name, object_type
FROM dba_objects
WHERE object_name LIKE '%MEXT%'
AND object_type IN ('TABLE', 'VIEW')
ORDER BY object_name;

This query returns more than a hundred objects. Among them, you can find a EM_MEXT_VERSIONS table.

EM_MEXT_VERSIONS is the catalog

EM_MEXT_VERSIONS has one row per Metric Extension. Drafts, editable versions and published metrics are all stored here, with the same name column.

SQL> DESC sysman.em_mext_versions

Name            Null?    Type
--------------- -------- -------------
MEXT_VERSION_ID NOT NULL NUMBER
TARGET_TYPE     NOT NULL VARCHAR2(256)
NAME            NOT NULL VARCHAR2(64)
VERSION         NOT NULL NUMBER
DISPLAY_NAME    NOT NULL VARCHAR2(64)
STATUS          NOT NULL NUMBER(2)
CREATION_DATE            DATE
...

Using a few useful columns, let’s see what’s inside:

SQL> SELECT name, version, display_name, target_type, status, creation_date
FROM sysman.em_mext_versions
ORDER BY name, version;

NAME                          VERSION DISPLAY_NAME         TARGET_TYPE STATUS CREATION_DATE
----------------------------- ------- -------------------- ----------- ------ -------------
ME$minimal_uptime_check             1 Minimal Uptime Check host             2 24-AUG-26
ME$minimal_uptime_check             2 Minimal Uptime Check host             2 24-AUG-26
ME$minimal_uptime_check_clone       1 Minimal Uptime Check host             2 24-AUG-26

Every Metric Extension name starts with the ME$ prefix. If you ever created a Metric Extension by hand in the web UI, the prefix is automatically added in the creation wizard. Regarding the status column, they are defined in the SYSMAN.EM_MEXT package:

  • 0 - MEXT_STATUS_EDITABLE: for Metric Extensions still under development. They can still be edited, but can’t be deployed to targets.
  • 1 - MEXT_STATUS_DEPLOYABLE_DRAFT: for Metric Extensions which can’t be edited anymore, but can be deployed. Accessible only to you.
  • 2 - MEXT_STATUS_PUBLISHED: for published Metric Extensions, accessible by any EM user.

Every row above shows status = 2, meaning that all versions were published.

You can of course combine multiple SYSMAN views to retrieve the list of Metric Extensions and the targets they are deployed on:

SQL> SELECT t.target_name, t.target_type, v.name AS metric_name, v.version, v.display_name AS metric_display_name
FROM sysman.em_mext_versions v
JOIN sysman.em_mext_target_assoc ta ON ta.mext_version_id = v.mext_version_id
JOIN sysman.mgmt$target t ON t.target_guid = ta.target_guid
ORDER BY t.target_name, v.name, v.version;

TARGET_NAME TARGET_TYPE METRIC_NAME             VERSION METRIC_DISPLAY_NAME
----------- ----------- ----------------------- ------- --------------------
vmogg       host        ME$minimal_uptime_check       1 Minimal Uptime Check
...

How to know what a metric extension runs ?

If a Metric Extension runs OS commands, querying SYSMAN.EM_MEXT_VERSIONS is enough to know everything about it. This becomes wrong if the Metric Extension uses a custom uploaded script or runs against the repository instead of a target. For these Metric Extensions, you should query SYSMAN.EM_MEXT_ATTACHMENTS, where the FILENAME gives you the name of the script being shipped with the metric:

SQL> DESC sysman.em_mext_attachments

Name            Null?    Type
--------------- -------- -------------
MEXT_VERSION_ID NOT NULL NUMBER
FILENAME        NOT NULL VARCHAR2(255)
FILE_CONTENTS            BLOB

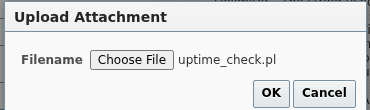

I cloned ME$minimal_uptime_check with Create Like, then in the Adapter step changed the command from a literal /bin/echo to %perlBin%/perl running an uploaded script, referenced as %scriptsDir%/uptime_check.pl. Custom files are attached from the same step, in the Upload Custom Files panel:

The Upload Attachment dialog in the Metric Extension wizard's Adapter step, with uptime_check.pl chosen via Choose File and ready to confirm with OK

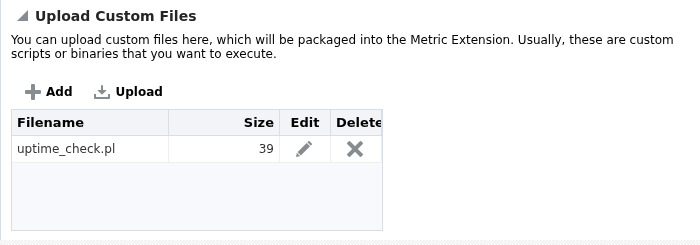

Once confirmed, the file shows up in the adapter’s file list with its size, and gets packaged into the Metric Extension itself:

The Adapter step's Upload Custom Files panel listing uptime_check.pl, 39 bytes, with edit and delete icons for the uploaded file

Querying the repository afterward confirms it ended up exactly where the package source implied:

SQL> SELECT v.name, v.version, a.filename, DBMS_LOB.GETLENGTH(a.file_contents) AS bytes
FROM sysman.em_mext_versions v
JOIN sysman.em_mext_attachments a ON a.mext_version_id = v.mext_version_id
WHERE v.name = 'ME$script_uptime_check';

NAME                   VERSION FILENAME        BYTES
---------------------- ------- --------------- -----
ME$script_uptime_check       1 uptime_check.pl    39

Retrieving the full metric definition

There are a few other relevant LOB columns in SYSMAN.EM_MEXT_VERSIONS: METADATA_DEFINITION, COLLECTION_DEFINITION and MEXT_ARCHIVE. Selecting METADATA_DEFINITION for minimal_uptime_check returns the whole <Metric> definition as XML:

SQL> SELECT metadata_definition
FROM sysman.em_mext_versions
WHERE name = 'ME$minimal_uptime_check'
AND version = 1;

<Metric NAME="ME$minimal_uptime_check" TYPE="TABLE">
    <Display>
        <Label NLSID="NLS_METRIC_hostME$minimal_uptime_check">Minimal Uptime Check</Label>
        <Description NLSID="NLS_DESCRIPTION_hostME$minimal_uptime_check">Minimal test ME - single OS command column, no credentials.</Description>
    </Display>
    <TableDescriptor>
        <ColumnDescriptor NAME="value" TYPE="NUMBER">
            <Display>
                <Label NLSID="NLS_COLUMN_hostME$minimal_uptime_checkvalue">Value</Label>
            </Display>
        </ColumnDescriptor>
    </TableDescriptor>
    <QueryDescriptor FETCHLET_ID="OSLineToken">
        <Property NAME="command" SCOPE="GLOBAL">/bin/echo</Property>
        <Property NAME="scriptLoc" SCOPE="GLOBAL" OPTIONAL="TRUE">%scriptsDir%</Property>
        <Property NAME="args" SCOPE="GLOBAL" OPTIONAL="TRUE">em_result=1</Property>
        <Property NAME="delimiter" SCOPE="GLOBAL" OPTIONAL="TRUE">|</Property>
        <Property NAME="startsWith" SCOPE="GLOBAL" OPTIONAL="TRUE">em_result=</Property>
        <Property NAME="ENVEM_TARGET_NAME" SCOPE="INSTANCE" OPTIONAL="TRUE">NAME</Property>
        <CredentialRef NAME="OSCreds"></CredentialRef>
    </QueryDescriptor>
</Metric>

A few observations here:

  • FETCHLET_ID="OSLineToken" is the fetchlet
  • command, args, delimiter and startsWith are the fields filled when creating the metric.

Another column, COLLECTION_DEFINITION, gives the schedule of the Metric Extension. Here, it is set to run every 15 minutes, which is the default schedule for Metric Extensions.

SQL> SELECT collection_definition
FROM sysman.em_mext_versions
WHERE name = 'ME$minimal_uptime_check'
AND version = 1;

<CollectionItem NAME="ME$minimal_uptime_check" UPLOAD="YES">
	<Schedule>
		<IntervalSchedule INTERVAL="15" TIME_UNIT="Min"/>
	</Schedule>
	<MetricColl NAME="ME$minimal_uptime_check">
	</MetricColl>
</CollectionItem>

Finally, MEXT_ARCHIVE stores the whole archive as a single BLOB. Exporting it to a file with UTL_FILE gives us a .zip file which contains the full definition of the Metric Extension. But you don’t need to do all of this, because this is the exact same zip that emcli export_metric_extension generates.

A side note on repository-side Metric Extensions, which can also be created from the web UI. For these, there are a few pre-requisites: TARGET_GUID must be the first column, the query can only reference MGMT$ repository views (not other SYSMAN tables), and it runs as the MGMT_VIEW user.

Querying SYSMAN.EM_MEXT_VERSIONS gives you the full SQL query, under the REPOS_SQL column. Use IS_REPOSITORY to filter repository-side Metric Extensions.

SQL> SELECT name, version, is_repository, repos_sql
FROM sysman.em_mext_versions
WHERE name = 'ME$sql_target_count';

NAME                VERSION IS_REPOSITORY REPOS_SQL
------------------- ------- ------------- --------------------------------------------------------------------------------------------
ME$sql_target_count       1             1 SELECT target_guid, target_type, 1 AS host_count FROM mgmt$target WHERE target_type = 'host'

I hope this will help you navigate Metric Extensions outside of the web UI, for automation work. This gave us a first glimpse of the archive format, which deserves a closer look.
